VBOX OLED Display

HomeVBOX OLED Display

OVERVIEW

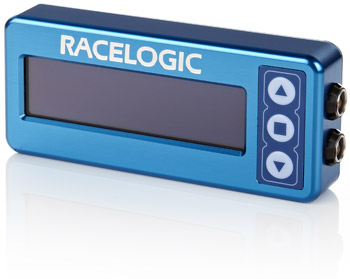

The OLED Display is the perfect partner to VBOX logging systems. Suitable even in bright conditions, the display provides sharp graphics and is simple to use. It can show a wide range of parameters, including live and max speed, lap times, and predictive lap timing.

The OLED display can start and stop logging in conjunction with some VBOX models, and also report logging status. It is available in either a waterproof anodised blue aluminium case, or a splash proof plastic and aluminium case. Different connections are available (Fischer, Lemo, Mini Din, Hirose) depending on the unit it is to be used with.

FEATURES

  • Easy operation
  • Inverse screen colours
  • Different font options
  • Internal accelerometer flips display according to the way it is mounted
  • Can show logging and capacity status of connected VBOX
  • Recognises data from standard VBOX CAN and serial data output
  • Low power consumption: 1.2W

VBOX 3i can be combined with a wide range of VBOX modules, telemetry systems and displays.

DISPLAY MODES

The OLED Display has different display modes, accessed using the Up and Down buttons. The data on each screen is calculated at all times, even if it is not currently displayed.



The OLED Display can invert screen colours or display the font as a high contrast outline to match lighting conditions.

SPECS

OLED DISPLAY WITH ALUMINIUM HOUSING (VBDSP04)

  • Unit Connection: 2 x Fischer 5w sockets
  • IP Rating: IP66 Rating
  • Operating Temp: -40 to +70°C
  • Power: 1.2W
  • Input Voltage: 6-30VDC
  • Dimensions: 115 x 50 x 20mm (excl. connectors)
  • Weight: 146g (exc. cable)

OLED DISPLAY WITH PLASTIC HOUSING (VBDSP05)

  • Unit Connection: Fixed flying cable (2m)
  • IP Rating: IP64
  • Operating Temp: -40 to +70 °C
  • Power: 1.2W
  • Input Voltage: 6-30VDC
  • Dimensions: 101 x 51.5 x 26.5mm (excl. cable)
  • Weight: 147g (including attached cable)

LEAD OPTIONS

  • Fischer – Fischer lead (RLCAB077) for use with VBOX Micro and Performance Box Sport
  • Fischer – Lemo lead (RLCAB063) for use with all other VBOX products
  • Fischer – Mini Din (RLCAB092) for use with Video VBOX Lite
  • Fischer – Hirose (RLCAB092-H) for use with Video VBOX Waterproof

LEAD OPTIONS

  • Mini-Din 5w plug for use with Video VBOX Lite (VBDSP05-M)
  • Lemo 5w plug for use with Video VBOX Pro (VBDSP05-L)
  • Hirose 5w plug for use with Video VBOX Waterproof (VBDSP05-H)
  • Fischer 5w plug for use with VBOX Micro and Performance Box Sport (VBDSP05-F)

COMPATIBILITY

  • VBOX 3i, Video VBOX, VBOX IISX (Single, Dual and Triple Antenna), VBOX III, VBOX Micro, Performance Box Sport

COMPATIBILITY

  • Depends on lead option

OUTPUTS

  • CAN Pass-Through, either from VBOX modules or Vehicle CAN
  • Power: Digital outputs capable of supplying 500mA (reserved for future use)
  • Voltage: Digital output voltage is same as display input voltage



Download or print datasheet here.
